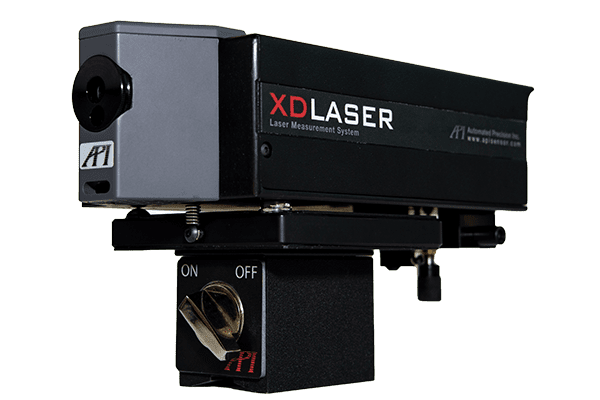

XD LASER


MULTI-AXIS LASER INTERFEROMETER


  • 80 meter

    LINEAR RANGE

  • 6DoF

    MEASUREMENT

  • 0.5 ppm

    ACCURACY/METER

  • 4.2 KG

    TOTAL WEIGHT


OUR 3D CAD MODEL WAS EXTREMELY ACCURATE THAT WE IMPROVED OUR PROTOTYPE. WE THANK API SERVICES TEAM FOR HELPING US WITH THIS INNOVATED

- A SATISFIED MECHANICAL ENGINEER


5-AXIS CNC CALIBRATION


The XD Laser is the only assessment system that can measure all 6 error parameters simultaneously in a single set-up.



FAST MEASUREMENT


The XD Laser’s fast, accurate measurement of machine positioning and axial capability makes complete machine assessment possible with up to 80% less machine downtime compared to conventional interferometers.

REAL-TIME ANALYSIS


XD Laser is the only assessment system that can measure all 6 error parameters simultaneously in a single set-up. Software is also included for control, data acquisition and reporting.


PRODUCT SPECS
