AUTOMATED 6DoF SENSOR


SMART TRACK SENSOR


  • 50M

    WORKING RADIUS

  • 50°/second

    ANGULAR SPEED

  • 1.4 KG

    TOTAL WEIGHT

  • REAL-TIME

    TARGETING & FEEDBACK


OUR 3D CAD MODEL WAS EXTREMELY ACCURATE THAT WE IMPROVED OUR PROTOTYPE. WE THANK API SERVICES TEAM FOR HELPING US WITH THIS INNOVATED

- A SATISFIED MECHANICAL ENGINEER


ROBOTIC ENHANCEMENT

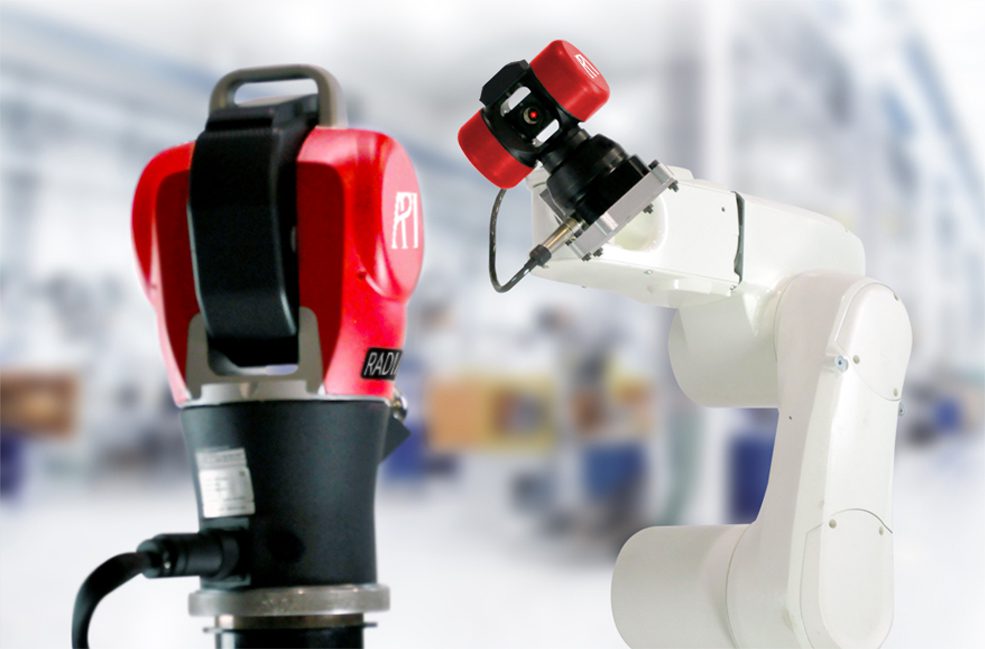

Smart TRACK Sensor (STS) paired with a Radian Laser Tracker will reduce inaccuracies and provide performance data during Robotic Calibration. This system will produce precise measurements and repeatability in manufacturing tasks.



REAL-TIME CALIBRATION

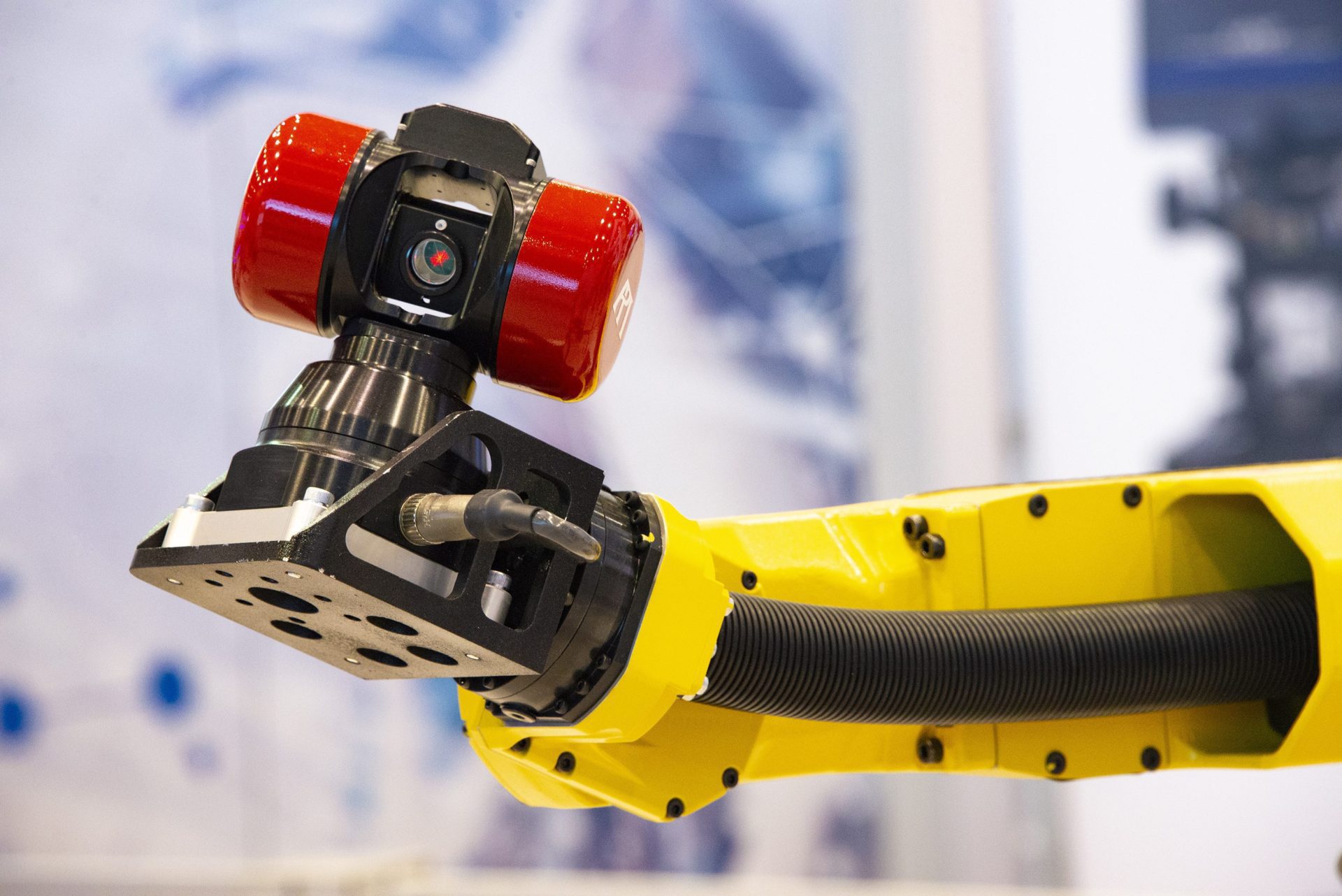

Combined use of the laser tracker and STS reveals real-time position and orientation of a moving target like a robotic end-effector.

6DoF TRACKING


STS continuously locks on to a Radian Laser Tracker to determine position (x, y, z) and angular orientation (pitch, yaw, roll) of a tracked point in real-time.


PRODUCT SPECS
