” type=”left” button_text=”Request QUote” circle=”false” button_icon=”l-cart-plus” href=”/contact-api/” href_title=”” target=””][/cs_element_column][/cs_element_row][/cs_element_section][/cs_content][cs_content_seo]ROBOT CALIBRATION

Robots are historically repeatable but not accurate. Today many automation tasks require improved process control and a higher order of accuracy than that delivered by robot manufacturers including aerospace machining, drilling and assembly operations. API offers robot performance verification and calibration services providing improved control of manufacturing processes.

DOWNLOAD BrochureREQUEST QUOTE

Improved robot accuracy increases control of manufacturing processes. API qualified and experienced robot calibration team are available to enhance your robot performance.
“Discover how to improve your robots accuracy and performance.”

CONTACT API

ROBOT PERFORMANCE VERIFICATION

Quantifies robot performance in accordance to ISO 9283. Robot performance verification is the process of identifying the real geometric parameters present in the kinematic structure of a robot, such as relative positions of robot joint links. A total of 14 static and dynamic tests are used to quantify a robot’s absolute performance determining robot accuracy, repeatability and identifying inherent robot joint wear.

ROBOT CALIBRATION

Typical applications for enhanced robot accuracy include machining, drilling, grinding, welding, cutting, inspection, deburring and 3D printing. Activities such as robot cell “cloning”, “cell mirroring” or “robot swapping” also benefit from enhanced robot accuracy by providing seamless and precise off-line robot programming. Accurate robots improve process capability as a robot positions more accurately to its commanded position negating the ‘touch-up’ of robot programs.

ENHANCED ROBOT PATH PLANNING

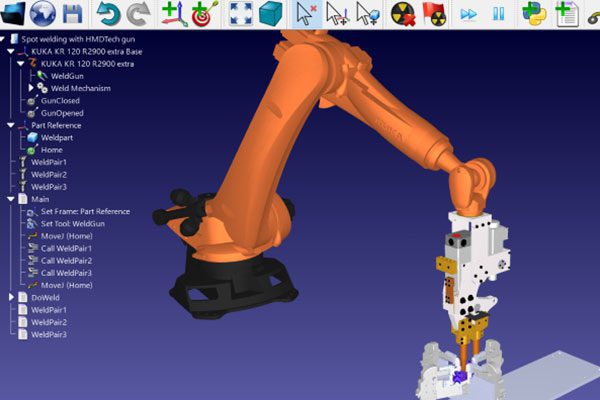

API’s Robocal software offers both DH kinematic model and a volumetric error compensation model (VEC) to update robot accuracy using collected calibration data. Existing robot path programs can be automatically updated driving the robot to its corrected calibrated positions.

ROBOT MEASUREMENT SOFTWARE (RMS)

API’s RMS software provides a single seamless solution for robot process performance enhancement and optimization. RMS can be supplied as a Robot Performance Measurement (RPM) module or combined Robot Calibration (RoboCal) and Robot Path Plan Enhancement (PPE) module. Let API show how enhanced robot performance can benefit your process.

EXPERIENCE MATTERS

FEATURES & BENEFITS

On both planned and emergency call outs, API has the professional network in place to respond to your immediate needs. Our project managers and measurement technicians operate with support from centralized engineering and technical resources to meet your operational requirements. We deliver value-added metrology solutions intended to improve the performance and reliability of the overall inspection and turbine alignment process. Our measurement professionals have extensive experience in the alignment and inspection of both small, aero-derivative and heavy industrial gas turbines, steam, hydro, nuclear and wind turbines and components, reciprocating machinery, boiler feed pumps, gearboxes, motors, and compressors.

INDUSTRIES

API is knowledgeable and has expertise in practically every industry application – we are the perfect partners in creating your measurement plan.

Aerospace
Automotive
Heavy Machinery
Energy
Military & Defense
Manufacturing
Transportation

CERTIFICATIONS

ISO 17025 Accredited
A2LA Accredited
