XD LASER

MULTI-AXIS LASER INTERFEROMETER

80 METER

LINEAR RANGE

0.5 PPM

ACCURACY/METER

6DOF

MEASUREMENT

4.2 KG

TOTAL WEIGHT

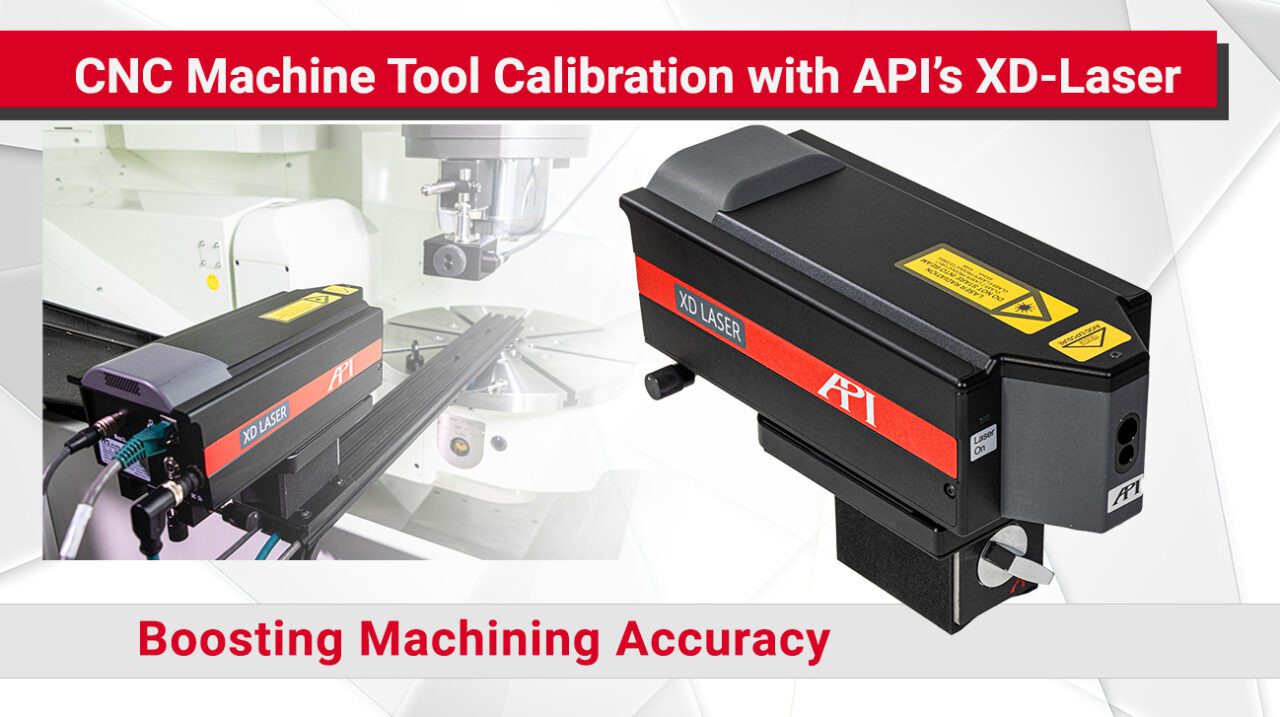

5 AXIS CNC CALIBRATION

The XD Laser is the only assessment system that can measure all 21 error parameters simultaneously in a single set-up.

FAST MEASUREMENT

The XD Laser’s fast, accurate measurement of machine positioning and axial capability makes complete machine assessment possible with up to 80% less machine downtime compared to conventional interferometers.

REALTIME ANALYSIS

XD Laser is the only assessment system that can measure all 21 error parameters simultaneously in a single set-up. Software is also included for control, data acquisition and reporting.

CONTACT

Phone: 1-800-537-2720





Features & Benefits

RAPID MEASUREMENT

The XD Laser’s fast, accurate measurement of machine positioning and axial capability makes complete machine assessment possible with up to 80% less machine downtime compared to conventional interferometers.

6 DOF MEASUREMENT

XD Laser is the only assessment system that can measure all 21 error parameters simultaneously in a single set-up.

MEASUREMENT FLEXIBILITY

XD Laser evaluates velocity, acceleration, parallelism, squareness, and flatness error of a machine.

COMPACT DESIGN

XD Laser system contains minimal parts and compact sensors for ease of setup and maximization of the machine measurement volume.

SOFTWARE

Includes XD Laser software for control, data acquisition and reporting. Linear and volumetric error compensation options are also available.

SERVICE & SUPPORT

The Automated Precision global team provides consistent support anywhere in the world.

Applications

The award-winning XD Laser is a multidimensional laser measurement system that simultaneously measures all 21 degrees of freedom including linear, angular, straightness and roll errors for rapid machine tool error assessment. Measurements Include:

  • Rotational accuracy
  • Geometric error
  • Angular error
  • Flatness
  • Squareness
  • Parallelism

Technical Specifications

Linear Measurement

XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
Device Model
XD1 LS
XD3 LS
XD5 LS
XD6 LS
XD1 LP
XD5 LP
XD6 LP
Measurement Range
0 – 45 m
80 m (optional)
0 – 45 m
80 m (optional)
0 – 45 m
80 m (optional)
0 – 45 m
80 m (optional)
0 – 45 m
80 m (optional)
0 – 45 m
80 m (optional)
0 – 45 m
80 m (optional)
Accuracy
0.5 μm/m
0.5 μm/m
0.5 μm/m
0.5 μm/m
0.5 μm/m
0.2 μm/m
0.2 μm/m
0.2 μm/m

Straightness Measurement

XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
Device Model
XD1 LS
XD3 LS
XD5 LS
XD6 LS
XD1 LP
XD5 LP
XD6 LP
Measurement Range
± 0.5 mm*
± 0.5 mm*
± 0.5 mm*
± 0.3 mm*
± 0.3 mm*
Accuracy
± (2 μm + 0.4 μm/m) or 2% of max measured error
± (1 μm + 0.2 μm/m) or 1% of max measured error
± (1 μm + 0.2 μm/m) or 1% of max measured error
± (0.5 μm + 0.1 μm/m) or 1% of max measured error
± (0.5 μm + 0.1 μm/m) or 1% of max measured error

Angulatrity Measurement

XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
Device Model
XD1 LS
XD3 LS
XD5 LS
XD6 LS
XD1 LP
XD5 LP
XD6 LP
Measurement Range
± 800 arcsec
± 800 arcsec
± 400 arcsec
± 400 arcsec
Pitch & Yaw Accuracy
± (1.0 arcsec + 0.1 arcsec/m)
± (1.0 arcsec + 0.1 arcsec/m)
± (0.5 arcsec + 0.05 arcsec/m)
± (0.5 arcsec + 0.05 arcsec/m)
Roll Accuracy
(Horizontal Axes Only)
± 1.0 arcsec or 1% of max measured error
± 0.5 arcsec or 1% of max measured error

Parallelism Measurement

XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
Device Model
XD1 LS
XD3 LS
XD5 LS
XD6 LS
XD1 LP
XD5 LP
XD6 LP
Accuracy
± (1.0 arcsec + 0.4 arcsec/m)
± (1.0 arcsec + 0.4 arcsec/m)
± (1.0 arcsec + 0.2 arcsec/m)
± (1.0 arcsec + 0.2 arcsec/m)

Squareness Measurement

XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ STANDARD SERIES (LS)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
XD™ PRECISION SERIES (LP)
Device Model
XD1 LS
XD3 LS
XD5 LS
XD6 LS
XD1 LP
XD5 LP
XD6 LP
Accuracy
± (1.0 arcsec + 0.4 arcsec/m)
± (1.0 arcsec + 0.2 arcsec/m)
± (1.0 arcsec + 0.2 arcsec/m)
± (1.0 arcsec + 0.2 arcsec/m)
± (1.0 arcsec + 0.2 arcsec/m)

*After 25m, measurement range may decrease up to 50%

Laser Specifications

Wavelength Compensation
Operating Temperature
Operating Humidity
Output Power
Laser Head Weight
Laser Dimensions
± 0.05 ppm
-5º C – 40º C
0 – 95% non condensing
Class 2 Laser
Body: 3.8 kg, Sensor: 0.4 kg
Body: 230 x 108 x 102 mm
Sensor: 70 x 94 x 45 mm

Environmental Compensation

Air Temperature Accuracy
Air Temperature Accuracy
Air Pressure Accuracy
Air Pressure Accuracy
Relative Humidity Accuracy
Material Temperature Accuracy
± 0.2º C (XD™ LS)
± 0.1º C (XD™ LP)
± 1.0 mm Hg X (XD™ LS)
± 0.4 mm Hg (XD™ LP)
± 5% (All Models)
0.1º C (All Models)
