RADIAN LASER TRACKER
Precise Measurements for Dimensional Metrology and GD&T
LASER TRACKER FEATURES
80M
RANGE
WIRELESS
CONNECTIVITY
COMPACT
INTEGRATED CONTROLLER
8 HOUR
BATTERY LIFE
9KG
IN WEIGHT
0.7 μm
ACCURACY / METER
The API RADIAN Laser Tracker is available in 3 models. PRO, PLUS, and CORE.
RADIAN LASER TRACKER
The Radian Laser Tracker provides accurate, precise measurements for dimensional metrology.
✔️ DESIGNED FOR DURABILITY
✔️ QUICK & EFFICIENT WARM-UP TIME
✔️ AIR-OVER COOLING TEMPERATURE STABILITY
✔️ WIRELESS CONNECTIVITY
✔️ EFFORTLESS RECAPTURE WITH AUTOLOCK
THE RADIAN LASER TRACKER SERIES
RADIAN PLUS
PLUS provides extended CORE tracker functionality with hand-held tactile & laser scanning probes and offers 6DOF tracking.
RADIAN PRO
PRO IFM/ADM tracker with unrivaled accuracy and comprehensive functionality including automated 6DOF tracking
RADIAN CORE
CORE offers economical SMR tracker functionality with benchmark accuracy in 50m and 80m ADM models.
APPLICATIONS
RADIAN Laser Trackers and accessories are a highly flexible, portable coordinate measuring solution with applications across all industries.
RADIAN excels at all dimensional metrology tasks including dynamic precision measurement, hidden-point probing, high-definition surface scanning and feature extraction for automation and machine control.
Applications include:
• Alignment
• GD&T
• Calibration
• Part Measurement
• Jigs, Fixture & Tooling Inspection
• Reverse Engineering
• Robotics
• Adaptive Control
TECHNICAL SPECIFICATIONS
| RADIAN – Core | RADIAN – Plus | RADIAN – Pro | |
| Laser Technology – ADM/IFM | ADM -3D | ADM – 3D/6D | ADM/IFM – 3D/6D |
| Maximum Distance Range (Diameter) | 50m | 80m* | 50m | 80m* | 20m* | 50m | 80m* |
| Wireless Operation | √ | √ | Ethernet |
| SMR Measurement | √ | √ | √ |
| Hand-Held Probing (vProbe) | √ | √* | |
| Hand-Held Laser Scanning (iScan) | √* | √* | |
| Live Camera View | √ | ||
| Integrated Controller | √ | √ | |
| Battery Operation | 10 hours | 10 hours | |
| 6DOF Active Target | √ | √ | |
| 6DOF Smart Track | √ |
*Optional
API PROMISE
Manufactured in the USA
all RADIAN Laser Trackers are supplied with the industry’s most comprehensive 2-year parts and labor warranty standard, with 5-Year, Zero Cost of Ownership upgrades available. API offers all-inclusive tracker calibration and maintenance contracts that also include loaner tracker program and advance calibration reservation program.
all RADIAN Laser Trackers are supplied with the industry’s most comprehensive 2-year parts and labor warranty standard, with 5-Year, Zero Cost of Ownership upgrades available. API offers all-inclusive tracker calibration and maintenance contracts that also include loaner tracker program and advance calibration reservation program.
HAND-HELD TARGETS

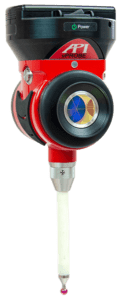

vProbe tactile measuring probe and iScan 3D laser line scanner extend the measuring capabilities of RADIAN PLUS and PRO tracker models.
